In the high-stakes world of pipeline construction, the focus is usually on the weld. We obsess over the metallurgy, the heat-affected zone, and the X-ray inspection. But there is a silent killer of project timelines that happens long before the welder strikes an arc. It happens in the laydown yard, often days or weeks before installation.
It is the phenomenon of Ovalization, often referred to by field engineers as the “Teardrop Deformation.”

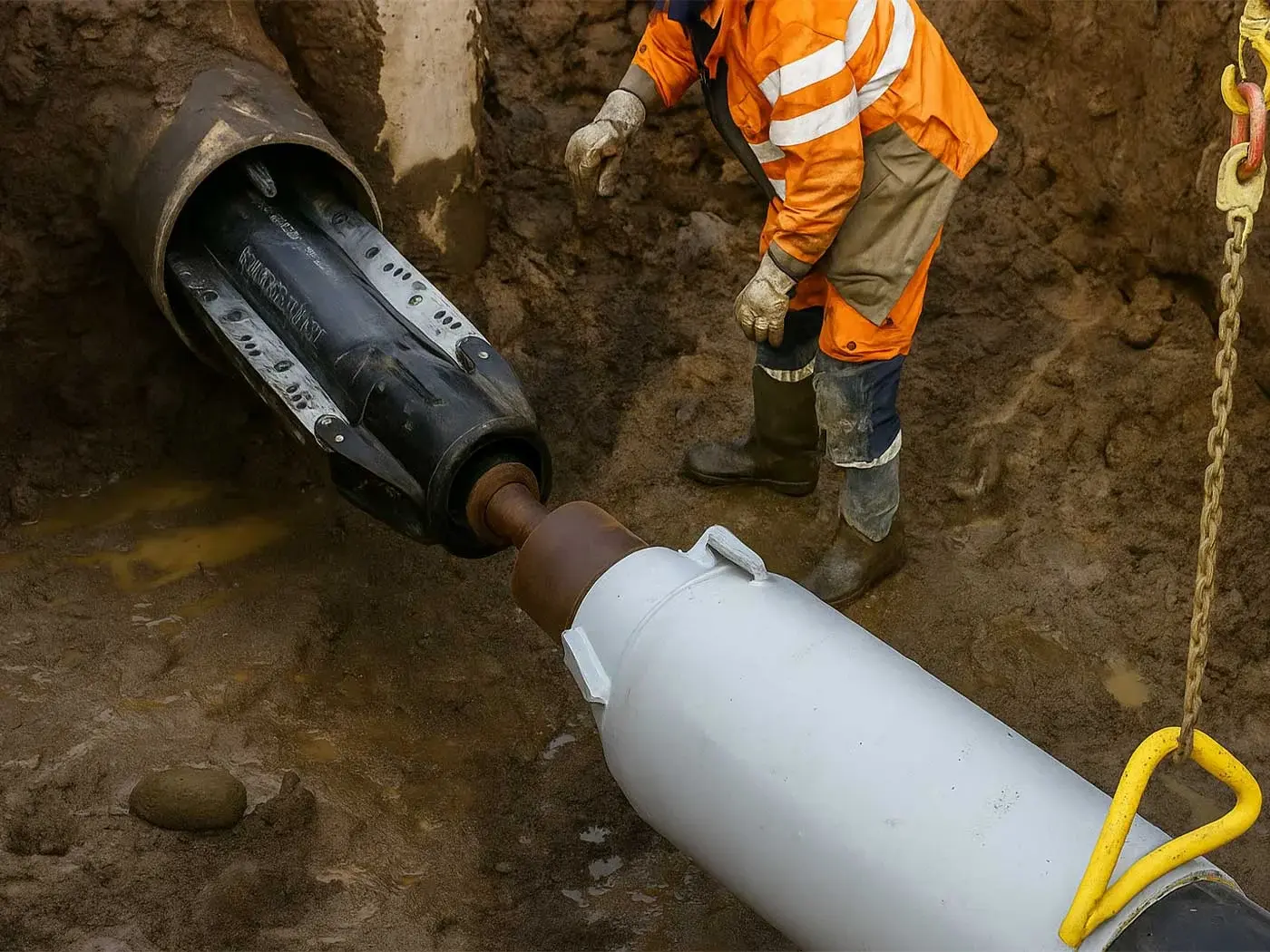

This occurs when a pipe is lifted incorrectly, causing gravity and clamping force to distort its perfect circular geometry into a slight oval. To the naked eye, the pipe looks fine. But when it arrives at the trench, and the fit-up crew tries to align it with the next joint, the two circles don’t match. One is a circle; the other is an oval. The result? A “High-Low” misalignment that violates code and stops the project dead in its tracks.
The Physics of the Squeeze
To understand why this happens, we have to look at the structural nature of a pipe.
A pipe is incredibly strong against internal pressure (burst strength) and axial tension (pulling). But large-bore, thin-walled pipes—like those used for water transmission or low-pressure gas—are surprisingly weak against radial compression (squeezing).
When you lift a 40-foot section of 48-inch steel pipe using a single point of contact—like a choker sling or a narrow mechanical clamp—you are applying massive localized pressure.
If the lifting device squeezes the pipe from the sides, the top and bottom bulge out. If the lifting device supports the pipe only from the bottom (like a hook), the top caves in due to its own weight. This deformation is plastic, meaning that for thin-walled pipes, the steel does not spring back to its original shape once the load is removed. It stays bent.
The “Point Load” Problem
The primary culprit is the surface area of the lift.
Standard rigging often relies on slings. A “choker hitch” is notorious for this. As the crane lifts, the noose tightens. On a heavy pipe, the wire rope bites into the steel, creating a stress concentration that can dent the wall or buckle the bevel at the end of the pipe.
Even mechanical scissor clamps can be guilty of this if the pads are too small. If you lift a 10-ton pipe with a clamp that has contact pads the size of a dinner plate, you are focusing 20,000 pounds of force onto two tiny spots. That pressure exceeds the yield strength of the steel wall, causing a permanent dent or an invisible “out-of-round” condition.
The “Taco” Effect on Coated Pipe
The problem gets worse with modern coatings. Many pipelines are coated with Fusion Bonded Epoxy (FBE) or concrete weight coatings.
If a pipe deforms during a lift, the steel bends, but the coating might not. Concrete coatings are brittle. When the steel flexes into an oval, the concrete jacket cracks. This is known as the “Taco Effect”—the pipe tries to fold like a taco shell, cracking the rigid topping.
These cracks allow moisture to penetrate to the steel surface, initiating corrosion before the pipe is even buried. A lift that saves five minutes in the yard can cost five figures in coating repairs.
The Solution: Spreading the Load
Preventing ovalization requires a shift in lifting philosophy. The goal is to maximize the contact patch—to spread the weight over as many square inches as possible.
- Vacuum Lifts: These are the gold standard for preventing deformation. A vacuum pad grips the top of the pipe with a massive surface area, lifting it gently without squeezing. However, they are expensive and sensitive to dust and moisture.
- Wide-Band Slings: Instead of wire rope, using extra-wide synthetic straps (12 inches or more) distributes the pressure.
- Engineered Geometries: The most robust mechanical solution involves using lifting devices specifically curved to match the radius of the pipe.
The Role of Mechanical Geometry
This is where specialized mechanical attachments prove their worth. A properly designed mechanical lifter doesn’t just “grab” the pipe; it cradles it.
Engineered lifters use curved friction pads that mimic the arc of the pipe. Instead of two points of contact, they might have contact along 30% of the pipe’s circumference. This transforms the lifting force from a “crushing” action into a “supporting” action.
Furthermore, these devices often lock into a fixed geometry. Unlike a gravity-based scissor clamp that tightens the harder you pull, a locking grab maintains a set diameter. It holds the pipe firmly enough to lift it, but it physically cannot squeeze it tighter than the preset limit, making it impossible for the operator to crush the wall.
Conclusion
A pipe is only useful if it is round. The moment it loses that geometry, it becomes scrap metal.
The journey from the truck to the trench is the most dangerous time for a pipe’s shape. By abandoning the primitive “choke and pull” methods and adopting lifting technologies that respect the structural limits of the cylinder—such as engineered Pipe Grabs with radiused pads—contractors ensure that when the welding crew arrives, the only thing they have to worry about is the spark, not the shape.
