As electrical systems evolve in complexity — from marine vessels and off-grid solar setups to specialty and commercial vehicles — the days of standalone components are long gone.
Integrating a Victron Energy Charge Controller with Your Battery Management System (BMS)
Smarter Charging Through System Integration
Professionals are now designing power systems that communicate, adapt, and protect themselves automatically. That’s where the combination of a Victron Energy charge controller and a battery management system (BMS) becomes essential.
When properly integrated, these components don’t just charge batteries — they actively manage current, temperature, and voltage in real time, extending battery life and preventing costly downtime.
Let’s break down how Victron Energy makes BMS integration seamless — and how to wire, monitor, and optimize your setup for peak performance.
1. Why BMS Integration Matters in Modern DC Systems
A battery management system (BMS) is the brain of your power system. It ensures batteries stay within safe operating limits by managing:
- Voltage levels — preventing overcharging or deep discharge.
- Temperature — regulating performance and safety.
- Current flow — protecting against overcurrent or short circuits.
- Cell balancing — keeping lithium cells equalized for maximum lifespan.
Without BMS coordination, even the smartest Victron Energy charge controller can’t adapt to your battery’s real-time needs. That’s why integrating both ensures that charging decisions are based on actual battery health, not just static voltage readings.
The result? Synchronized protection, longer battery life, and optimal system efficiency.
2. The Role of the Victron Energy Charge Controller
Victron’s SmartSolar and BlueSolar MPPT charge controllers** are designed to manage energy from solar panels and deliver it safely to your battery bank.
When paired with a BMS, they provide dynamic communication and adaptive charging to maintain ideal conditions.
Key features that make Victron Energy charge controllers ideal for integration:
- Bluetooth connectivity for monitoring via the VictronConnect app.
- VE.Direct or VE.Can communication ports for data exchange with other Victron devices.
- Smart MPPT algorithm that automatically adjusts input to maximize energy harvest.
- Programmable voltage and current thresholds for custom setups with lithium batteries.
These communication and customization features make Victron Energy controllers easy to integrate into multi-device BMS networks — whether you’re managing a marine hybrid system or an OEM battery enclosure.
3. How Victron Energy BMS Components Work Together
Victron Energy offers several components that make BMS integration straightforward:
BMV Battery Monitor Series
The BMV-712 Smart is one of Victron’s most popular monitors. It measures voltage, current, and amp-hours with extreme accuracy — providing real-time state-of-charge (SoC) data. When connected via VE.Direct, it can send that data to the charge controller and other devices.
SmartShunt
The Victron SmartShunt offers the same data as the BMV but in a compact, wire-friendly form. It replaces a traditional battery monitor and integrates via Bluetooth or VE.Direct, simplifying the setup.
VE.Bus BMS & Lynx Distributor
These advanced devices protect lithium batteries by disconnecting loads or chargers when voltage or temperature goes out of range. When linked to a Victron Energy charge controller, they ensure automatic safety intervention before any damage occurs.
Together, these create a fully networked system — a “smart grid” for your DC power.
4. Wiring and Communication: How to Connect the Components

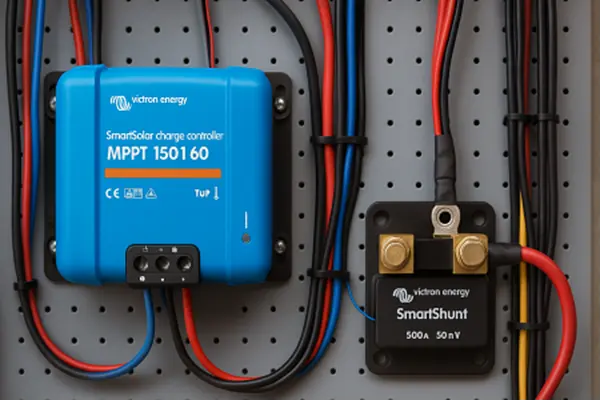

Step 1: Connect the Victron Energy Charge Controller to the Battery Bank
- Run positive and negative leads from the solar panels to the MPPT input terminals.
- Connect the output terminals of the Victron Energy charge controller to the battery’s positive and negative bus.
- Use appropriately rated fuses and cable sizes based on system amperage.
Step 2: Add the SmartShunt or BMV in the Negative Line
- Install the SmartShunt or BMV shunt between the battery negative terminal and the system’s common negative bus.
- This placement allows all system current (charge and discharge) to be accurately measured.
Step 3: Connect Communication Cables
- Use a VE.Direct cable between the charge controller and SmartShunt or BMV.
- Optionally, add a VE.Bus BMS or Cerbo GX device for advanced data sharing and system control.
- Enable Bluetooth connectivity through the VictronConnect app for wireless setup and diagnostics.
Step 4: Configure Settings in VictronConnect
Within the app, you can:
- Set battery type (Lithium, AGM, GEL).
- Adjust voltage thresholds and float settings.
- Link data between the BMS and charge controller to display SoC, temperature, and voltage in real time.
5. Smart Synchronization: How the System Works Together
Once integrated, the Victron ecosystem creates a closed communication loop:
- The BMS or SmartShunt measures battery condition (voltage, temperature, and SoC).
- This data is transmitted to the Victron Energy charge controller through VE.Direct.
- The charge controller then dynamically adjusts output — reducing current during high temperatures or lowering float voltage for lithium packs.
- The Cerbo GX or GX Touch Display aggregates all system data into one central interface, accessible remotely via VRM (Victron Remote Management).
The entire process ensures the batteries and charger operate in harmony, extending lifespan and preventing over-stress on cells.
6. Advantages of Victron Energy BMS Integration
Complete System Protection — Prevents overvoltage, undervoltage, and overheating through real-time communication.
Optimized Efficiency — MPPT charging curves are automatically adjusted for lithium or lead-acid chemistry.
Centralized Monitoring — Combine Victron’s charge controller, SmartShunt, and inverter/charger into one data stream.
Seamless Expandability — Add solar panels, alternators, or additional batteries without re-engineering your system.
Remote Management — Configure and monitor performance anywhere using VictronConnect or VRM.
For OEM designers, this level of control ensures consistent performance across multiple installations — while system technicians gain faster diagnostics and fewer field failures.
7. Real-World Example: Off-Grid Power System Integration
Imagine a remote service vehicle equipped with solar panels, a Victron SmartSolar MPPT controller, and a lithium battery bank with an integrated BMS.
Here’s how integration delivers results:
- The SmartShunt tracks all current flow and relays it to the charge controller.
- The MPPT controller adapts output automatically based on battery SoC.
- When the battery nears full charge, the controller limits current to prevent overheating.
- The BMS disconnects the charge source if safety thresholds are exceeded.
- All data appears live on the VictronConnect app or VRM portal, letting technicians make remote adjustments instantly.
The outcome: safe, synchronized, and automated power management — without manual intervention.
8. Troubleshooting Tips for a Clean Integration
- Always update firmware on all Victron devices to ensure compatibility.
- Use genuine VE.Direct or VE.Bus cables to avoid communication errors.
- Match voltage ratings across all devices (12V, 24V, or 48V).
- Avoid daisy-chaining too many devices without a proper GX hub.
- Label every connection — it makes future diagnostics much easier.
Following these practices guarantees consistent data flow and minimizes noise in the system.
The Power of Unified Energy Management
In professional energy systems, integration isn’t optional — it’s the foundation of performance, safety, and scalability.
Pairing your Victron Energy charge controller with a battery management system like the BMV or SmartShunt creates a synchronized network that protects your investment and simplifies system management.
Whether you’re designing marine power networks, off-grid solar installations, or OEM battery systems, Victron Energy delivers the communication, intelligence, and reliability modern energy systems demand.
